Abstract

The Generate Script is the heartbeat of your simulation pipeline. Its job is to programmatically assemble the MuJoCo MJCF model and perform all stochastic (random) draws. By the time this function returns, the simulation should be "frozen" in its initial state, ready for the physics engine to take over.

Generate final result

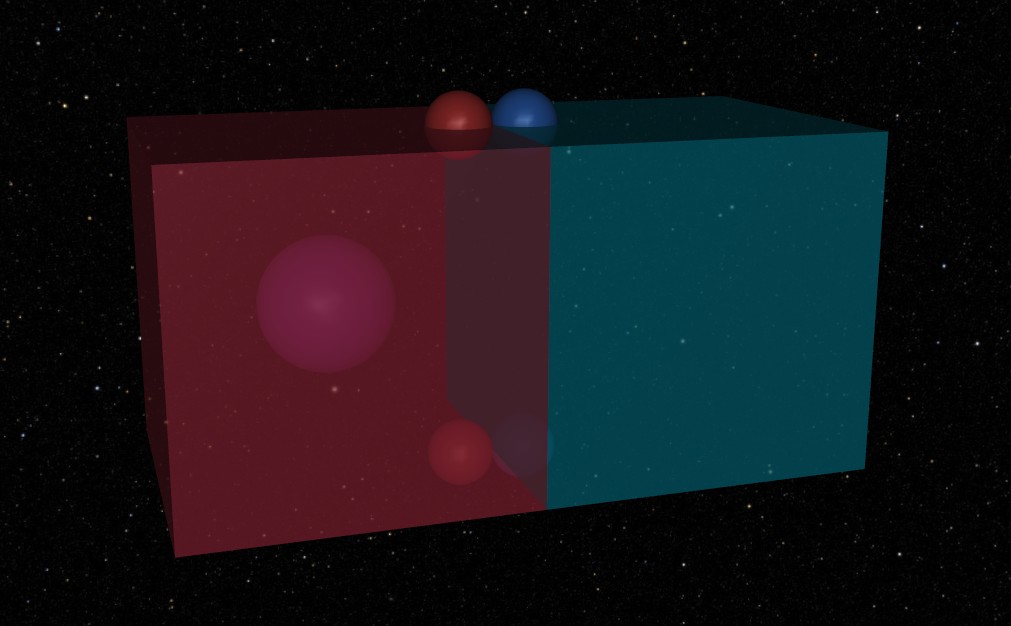

The visual result of the completed generator script: two translucent boxes with freejoints, spring attachment sites (red and blue spheres), and a central tracking site (fuchsia sphere), all set against a starry skybox.

Suggested Reading: Mojo Reloaded

After a brief skim of this guide, you may want to take a look at the guide on using Mojo Reloaded to accelerate your prototyping.

The Generate Function Contract

The generate script is built around the "MojoGenerate" protocol. This function provides a bare bones mojo.MojoModel which must be its first argument and optional *args and **kwargs.

It also must return a mojo.MojoModel.

Example: MojoGenerate Handle
Python
1
2
def generate(mojo_model: mojo.MojoModel, *args, **kwargs) -> mojo.MojoModel:
    """Generates the MJCF model and samples distributions."""

The Handoff Pattern

Because Mojo separates Generation (building the model) from Runtime (running the physics), you often need to pass references between them. Sites, bodies, or specific random values sampled during generation are often needed later to apply forces.

We use a Handoff dataclass or Pydantic BaseModel to encapsulate these references. This keeps your generate function clean and your runtime logic strongly typed.

Warning: User Data Validation

Using a non-Pydantic BaseModel based Handoff will not be validated. If it is critical to have a validated Handoff you should use a BaseModel.

Handoff objects are also not serialized when running, so it is not recommended to rely on this for future recreation of models.

Example: Handoff Class
Python
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
FIXED_CAMERA_NAME = mojo.CameraName("static")


class Handoff(mojo.UserData):
    """
    User-defined interconnect between the generator and runtime function.
    Retains MJCF definitions for use in the physics loop.
    """

    box1_rot: mojo.AnySite
    springs: dict[
        Literal["pz", "mz"],
        tuple[mojo.AnySite, mojo.AnySite, mojo.NamedValue, mojo.NamedValue],
    ] = Field(default_factory=dict)

    def define_spring(
        self,
        loc: Literal["pz", "mz"],
        box1: mojo.Body,
        box2: mojo.Body,
        mojo_model: mojo.MojoModel,
    ):
        mult = 1 if loc == "pz" else -1

        box1.sites.append(
            base := mojo.SiteSphere(
                name=mojo.SiteName(f"{loc}_spring_base_site"),
                size=0.1,
                pose=mojo.PoseQuat(pos=np.asarray([0.4, 0, mult * 0.5])),
                rgba=mojo.utils.Color.RED_500.rgba,
            )
        )
        box2.sites.append(
            tip := mojo.SiteSphere(
                name=mojo.SiteName(f"{loc}_spring_tip_site"),
                size=0.1,
                pose=mojo.PoseQuat(pos=np.asarray([-0.4, 0, mult * 0.5])),
                rgba=mojo.utils.Color.BLUE_500.rgba,
            )
        )

        # Perform random draws tied to the model seed
        stiffness = mojo_model.sample_dist(
            mojo.TruncatedNormalDistribution(
                name=mojo.DistName(f"{loc}_stiffness"),
                nominal=100,
                mu=100,
                sigma=20,
                low=0,
            )
        ).squeeze()

        stroke = mojo_model.sample_dist(
            mojo.TruncatedNormalDistribution(
                name=mojo.DistName(f"{loc}_stroke"),
                nominal=(nom := 1),
                mu=nom,
                sigma=nom * 0.1,
                low=nom * 0.8,
                high=nom * 1.2,
            )
        ).squeeze()

        self.springs.update({loc: (base, tip, stiffness, stroke)})

    def add_spring_force(self, loc: Literal["pz", "mz"], rm: rt.RuntimeManager):
        assert rm.signal_manager is not None
        base, tip, stiffness, stroke = self.springs[loc]

        spring_force = rt.PointToPointForce.stroke_compression_spring(
            name=f"{loc}_spring",
            action_site=base,
            xtion_site=tip,
            stiffness=float(stiffness),
            max_stroke=float(stroke),
            preload=1000 if loc == "pz" else 750,
        ).register_to_rm(rm)

        base.request(rm.signal_manager)
        tip.request(rm.signal_manager)
        spring_force.request(rm.signal_manager)

Assets and Materials

Assets like textures and materials are defined in the mojo_model.mjcf.assets list. This is where you handle external files (like skyboxes) or built-in procedural textures like checkerboards.

Notice in the following code how enumerations such as mojo.TextureType.D2 and mojo.TextureBuiltInType.CHECKER are used instead of strings.

Tip: Walrus Operator (:=)

Notice the use of the walrus operator, this allows you to define an object and immediately keep a reference to it for later use in the script.

We will be using the grid_mat Material in the next section!

Tip: Color Utilities

Mojo provides some helpful utilities like mojo.utils.Color. This class provides a ton of helpful shortcuts for Tailwind CSS colors. This makes it really easy to customize the appearance of your model.

Example: Assets Definition
Python
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
    # Configure simulation assets
    mojo_model.mjcf.assets = [
        mojo.Asset(
            textures=[
                grid_tex := mojo.TextureBuiltIn(
                    name=mojo.TextureName("grid_tex"),
                    type=mojo.TextureType.D2,
                    builtin=mojo.TextureBuiltInType.CHECKER,
                    width=512,
                    height=512,
                    rgb1=mojo.utils.Color.SLATE_600.rgb,
                    rgb2=mojo.utils.Color.SLATE_800.rgb,
                )
            ],
            materials=[
                grid_mat := mojo.Material(
                    name=mojo.MaterialName("grid_mat"),
                    texture=grid_tex.name,
                    texrepeat=np.asarray((1, 1)),
                )
            ],
        ),
    ]

    # Handle skybox if in nominal mode
    if mojo_model.is_nominal:
        mojo_model.mjcf.assets.append(
            mojo.Asset(
                textures=[
                    mojo.Texture(
                        name=mojo.TextureName("skybox_texture_colors"),
                        type=mojo.TextureType.SKYBOX,
                        fileback=skybox_folder / "nz.png",
                        filedown=skybox_folder / "ny.png",
                        filefront=skybox_folder / "pz.png",
                        fileleft=skybox_folder / "nx.png",
                        fileright=skybox_folder / "px.png",
                        fileup=skybox_folder / "py.png",
                    )
                ]
            ),
        )

Mojo uses DepPath to handle asset paths, ensuring that your models remain portable across different machines. They have identical properties to pathlib.Path. In the MojoModel.mjcf, wherever you would use a Path object, instead use a DepPath.

Using DepPath is the key to portability; it tells Mojo to track the file as a dependency that is integral to your model. This allows Mojo to share a file on disk between different runs, preventing extra bloat!

Building the Worldbody

The worldbody contains your static environment and the kinematic tree of your bodies. Mojo's API mirrors the XML hierarchy exactly.

Note: Pose

Mojo provides many ways to define a position and orientation (pose). Shown below is a pose definition using mojo.PoseQuat. Other orientation options are using an axis angle, Euler angle sequence, X and Y axes, or a Z axis.

Example: Worldbody Definition
Python
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
    mojo_model.mjcf.worldbody = mojo.WorldBody(
        geoms=[]
        if mojo_model.is_nominal
        else [
            mojo.GeomPlane(
                name=mojo.GeomName("floor"),
                size=np.asarray([0, 0, 0.1]),
                pose=mojo.PoseQuat(pos=np.asarray((0, 0, -5))),
                material=grid_mat.name,
                contype=0,
                conaffinity=0,
            ),
        ]
    )

Sampling Distributions

Instead of using random.uniform(), use mojo_model.sample_dist(). This ensures that every random draw is:

Note: Squeezing NamedValues

The mojo_model.sample_dist method returns a NamedValue which works like a numpy array. You can use the .sqeeze() method to compact it (i.e., [1.0].squeeze() == 1.0)

Example: Sampling
Python
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
        # Perform random draws tied to the model seed
        stiffness = mojo_model.sample_dist(
            mojo.TruncatedNormalDistribution(
                name=mojo.DistName(f"{loc}_stiffness"),
                nominal=100,
                mu=100,
                sigma=20,
                low=0,
            )
        ).squeeze()

        stroke = mojo_model.sample_dist(
            mojo.TruncatedNormalDistribution(
                name=mojo.DistName(f"{loc}_stroke"),
                nominal=(nom := 1),
                mu=nom,
                sigma=nom * 0.1,
                low=nom * 0.8,
                high=nom * 1.2,
            )
        ).squeeze()

Finalizing the Model

Lets tie things up! At the end of your generate function, you attach your Handoff data to the mojo_model.user_data attribute. This makes it accessible to the runtime function later.

Example: End of Function
Python
1
2
3
4
5
6
7
    # Pack and execute handoff
    handoff = Handoff(box1_rot=box1_rot_site)
    mojo_model.user_data = handoff
    handoff.define_spring("pz", box1, box2, mojo_model)
    handoff.define_spring("mz", box1, box2, mojo_model)

    return mojo_model
Note: User Data Validation

User data is also required to be serializable! It should be a Pydantic BaseModel. If there is something you really are not able to make serializable, you can always use a PrivateAttr but this should be considered a last resort.

All of the Mojo MJCF objects are serializable. For some Numpy helpers, try using mojo.VecN!

Success

Okay. That was kind of a lot.

Now that we have completed building the kinematic tree, defining a user data to handoff, and an introduction to using distribution sampling, we now move on to defining the runtime behavior of the physics engine.

Example: Full Generate Script
Python
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
def generate(mojo_model: mojo.MojoModel, *args, **kwargs) -> mojo.MojoModel:
    """Generates the MJCF model and samples distributions."""
    skybox_folder = (mojo.DepPath() / "textures" / "stars").resolve()

    # Configure simulation assets
    mojo_model.mjcf.assets = [
        mojo.Asset(
            textures=[
                grid_tex := mojo.TextureBuiltIn(
                    name=mojo.TextureName("grid_tex"),
                    type=mojo.TextureType.D2,
                    builtin=mojo.TextureBuiltInType.CHECKER,
                    width=512,
                    height=512,
                    rgb1=mojo.utils.Color.SLATE_600.rgb,
                    rgb2=mojo.utils.Color.SLATE_800.rgb,
                )
            ],
            materials=[
                grid_mat := mojo.Material(
                    name=mojo.MaterialName("grid_mat"),
                    texture=grid_tex.name,
                    texrepeat=np.asarray((1, 1)),
                )
            ],
        ),
    ]

    # Handle skybox if in nominal mode
    if mojo_model.is_nominal:
        mojo_model.mjcf.assets.append(
            mojo.Asset(
                textures=[
                    mojo.Texture(
                        name=mojo.TextureName("skybox_texture_colors"),
                        type=mojo.TextureType.SKYBOX,
                        fileback=skybox_folder / "nz.png",
                        filedown=skybox_folder / "ny.png",
                        filefront=skybox_folder / "pz.png",
                        fileleft=skybox_folder / "nx.png",
                        fileright=skybox_folder / "px.png",
                        fileup=skybox_folder / "py.png",
                    )
                ]
            ),
        )

    mojo_model.mjcf.worldbody = mojo.WorldBody(
        geoms=[]
        if mojo_model.is_nominal
        else [
            mojo.GeomPlane(
                name=mojo.GeomName("floor"),
                size=np.asarray([0, 0, 0.1]),
                pose=mojo.PoseQuat(pos=np.asarray((0, 0, -5))),
                material=grid_mat.name,
                contype=0,
                conaffinity=0,
            ),
        ]
    )

    mojo_model.mjcf.options = [
        mojo.Option(timestep=0.001, gravity=np.asarray((0, 0, 0)))
    ]
    mojo_model.mjcf.visuals = [
        mojo.Visual(
            map=mojo.VisualMap(force=4),
            scale=mojo.VisualScale(forcewidth=0.1),
        )
    ]

    mojo_model.mjcf.worldbody.cameras = [
        mojo.Camera(
            name=FIXED_CAMERA_NAME,
            pose=mojo.PoseEuler(
                pos=np.asarray((0, -10, 0)),
                euler=np.asarray((90, 0, 0)),
            ),
            fovy=30,
        ),
    ]

    # Create two boxes using the walrus operator for immediate referencing
    mojo_model.mjcf.worldbody.bodies.extend(
        [
            box1 := mojo.Body(
                name=mojo.BodyName("box1"),
                pose=mojo.PoseQuat(pos=np.asarray([-0.5, 0, 0])),
                freejoints=[mojo.FreeJoint()],
                geoms=[
                    mojo.GeomBox(
                        name=mojo.GeomName("g1"),
                        size=np.asarray([0.5, 0.5, 0.5]),
                        rgba=mojo.utils.Color.ROSE_500.with_alpha(0.5),
                    )
                ],
            ),
            box2 := mojo.Body(
                name=mojo.BodyName("box2"),
                pose=mojo.PoseQuat(pos=np.asarray([0.5, 0, 0])),
                freejoints=[mojo.FreeJoint()],
                geoms=[
                    mojo.GeomBox(
                        name=mojo.GeomName("g2"),
                        size=np.asarray([0.5, 0.5, 0.5]),
                        rgba=mojo.utils.Color.CYAN_500.with_alpha(0.5),
                    )
                ],
            ),
        ]
    )

    box1.sites.append(
        box1_rot_site := mojo.SiteSphere(
            name=mojo.SiteName("box1_rot_site"),
            size=0.2,
            pose=mojo.PoseEuler(euler=np.asarray((45, 45, 45))),
            rgba=mojo.utils.Color.FUCHSIA_500.rgba,
        )
    )

    # Pack and execute handoff
    handoff = Handoff(box1_rot=box1_rot_site)
    mojo_model.user_data = handoff
    handoff.define_spring("pz", box1, box2, mojo_model)
    handoff.define_spring("mz", box1, box2, mojo_model)

    return mojo_model
